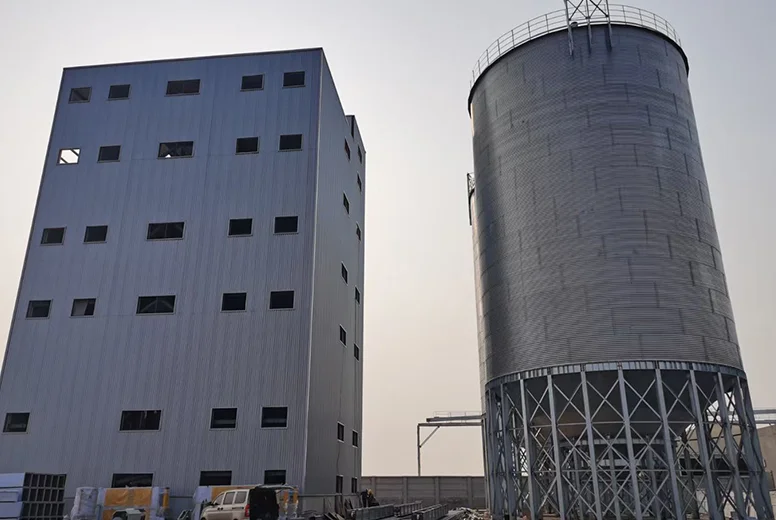

Modern grain storage faces three relentless enemies: pest infestation, mold growth, and quality degradation. A hopper bottom silo with an integrated fumigation system directly addresses all three, combining high-efficiency gravity discharge with advanced pest control technology to reduce residue rates by over 90% compared to flat-bottom silos and eliminate dangerous fumigation dead zones. Thi s comprehensive solution transforms storage from a passive holding operation into an active, preventive management system that delivers measurable gains in safety, operational efficiency, and long-term cost savings.
Hopper Bottom Silo Design: Optimizing Material Flow for Fumigation
The fundamental advantage of a hopper bottom silo lies in its conical or spiral-shaped bottom geometry. This design leverages gravity to achieve "self-flow" discharge, dramatically reducing residual material by more than 90% compared to traditional flat-bottom designs. This near-complete evacuation slashes the risk of cross-contamination between grain batches and eliminates the labor-intensive manual cleaning that flat-bottom silos require. From an engineering perspective, the hopper angle is typically designed between 45° and 60° to ensure smooth, consistent flow for common grains like corn, wheat, and soybeans, effectively preventing problematic "bridging" or "rat-holing" phenomena that can halt operations.
Material selection is equally critical. High-density polyethylene (HDPE) is widely used for seed and food-grade storage due to its excellent corrosion resistance and low friction coefficient, which further enhances material flow. Stainless steel is the preferred choice for high-humidity environments or where chemical additives are present. Structural safety under full load and fumigation pressure is ensured by roof-mounted explosion vents, access platforms with ladders, and reinforced wall stiffeners. This design philosophy prioritizes "easy clean-out and easy maintenance," creating the physical foundation for effective fumigation system integration.
Integrated Fumigation Systems: From Static Treatment to Dynamic Pest Control
Traditional fumigation often requires moving grain to a dedicated treatment bin or using mobile equipment, a process that is time-consuming, labor-intensive, and prone to uneven gas distribution. An integrated fumigation system built into a hopper bottom silo eliminates these inefficiencies. The system uses a closed-loop recirculation design that distributes fumigant gas evenly throughout the grain mass, reaching every interstitial space. Because the hopper bottom design eliminates flat surfaces and corners where grain accumulates, the fumigation process has no dead zones where pests can survive. This integrated approach reduces fumigant usage by up to 30% compared to traditional methods while achieving a 100% kill rate of target pests when properly applied.
Closed-Loop Recirculation Technology
Modern integrated systems employ a closed-loop recirculation design that continuously circulates fumigant gas from the top to the bottom of the silo. This ensures uniform concentration throughout the grain mass, even in silos exceeding 20 meters in height. The system includes gas monitoring ports at multiple levels, allowing operators to verify concentration levels in real-time and adjust dosing as needed.
Safety and Compliance Features
Safety is paramount in fumigation operations. Integrated systems include automatic gas detection sensors that trigger alarms if fumigant levels exceed safe thresholds in work areas. Pressure relief panels are designed to activate at specific pressure thresholds to prevent structural damage during fumigation. All systems comply with international standards for fumigation safety, including proper labeling, lockout/tagout procedures, and emergency shutdown capabilities.
Key Takeaways
- Key Data: Hopper bottom silos achieve over 90% reduction in residue rates compared to flat-bottom designs, directly reducing cross-contamination risk.
- Best Practice: Design the hopper angle between 45° and 60° for common grains like corn, wheat, and soybeans to ensure smooth gravity flow and prevent bridging.
- Watch Out For: Avoid using flat-bottom silos for fumigation-sensitive grains—they create dead zones where pests survive treatment, leading to re-infestation.
- Pro Tip: Choose HDPE for food-grade and seed storage due to its corrosion resistance and low friction coefficient, which enhances both material flow and fumigant distribution.
- Bottom Line: An integrated hopper bottom silo with fumigation system upgrades grain storage from passive holding to active pest prevention, delivering measurable safety, efficiency, and cost benefits.
Economic and Operational Benefits of Integrated Storage Solutions
The combination of hopper bottom design and integrated fumigation delivers substantial economic returns. Reduced residue rates mean less grain is lost to spoilage or cross-contamination, directly improving yield. Elimination of manual cleaning labor saves thousands of dollars annually per silo. Lower fumigant usage reduces chemical costs and environmental impact. Furthermore, the ability to treat grain in situ eliminates the need for dedicated fumigation facilities and the labor required to move grain between bins. For a medium-sized grain operation handling 50,000 tons annually, these savings can exceed $100,000 per year in reduced labor, chemical, and spoilage costs.
Frequently Asked Questions
Q: What is the optimal hopper angle for a silo designed for both grain storage and fumigation?
A: The optimal hopper angle is typically between 45° and 60° for common grains like corn, wheat, and soybeans. This range ensures smooth gravity flow while preventing "bridging" (where grain arches over the outlet) and "rat-holing" (where grain flows only through a central channel). A 55° angle is a common engineering standard that balances flow reliability with structural efficiency. For grains with higher moisture content or irregular shapes, a steeper angle of 60° may be specified.
Q: How does an integrated fumigation system differ from traditional portable fumigation methods?
A: Traditional portable fumigation requires moving grain to a dedicated treatment bin or using mobile equipment, which is time-consuming, labor-intensive, and often results in uneven gas distribution. An integrated system is built directly into the silo structure and uses closed-loop recirculation to distribute fumigant gas evenly throughout the grain mass. This eliminates dead zones, reduces fumigant usage by up to 30%, and allows in-situ treatment without grain movement. The integrated system also includes permanent monitoring ports and safety sensors that provide real-time data and automated safety shutdowns.
Q: What materials are best for hopper bottom silos used in food-grade grain storage with fumigation?
A: For food-grade grain storage, high-density polyethylene (HDPE) is the preferred material due to its excellent corrosion resistance, low friction coefficient, and FDA-compliant food contact properties. HDPE resists chemical attack from fumigants and does not react with stored grains. Stainless steel is recommended for high-humidity environments or where chemical additives are used, as it offers superior corrosion resistance in aggressive conditions. Galvanized steel is a cost-effective option for general grain storage but may require additional coatings for long-term fumigation exposure.
Q: How do you ensure even fumigant distribution in a hopper bottom silo?
A: Even distribution is achieved through a closed-loop recirculation system that continuously circulates fumigant gas from the top to the bottom of the silo. The system includes multiple injection points and gas monitoring ports at various levels to verify concentration. The hopper bottom design itself contributes by eliminating flat surfaces and corners where grain accumulates, ensuring the fumigant reaches every part of the grain mass. Operators use real-time concentration data to adjust dosing and circulation time, typically achieving uniform distribution within 24-48 hours of treatment initiation.
Q: What safety features are essential for a fumigation system integrated into a hopper bottom silo?
A: Essential safety features include automatic gas detection sensors that trigger alarms if fumigant levels exceed safe thresholds in work areas, pressure relief panels designed to activate at specific pressure thresholds to prevent structural damage, and lockout/tagout systems to prevent unauthorized access during treatment. The system should also include emergency shutdown capabilities, proper labeling of all fumigation equipment, and compliance with international standards such as OSHA and EPA regulations. Regular maintenance and certification of all safety devices are critical for ongoing safe operation.
Q: Can a hopper bottom silo with fumigation system be retrofitted to an existing flat-bottom silo?
A: Yes, retrofitting is possible but requires significant structural modifications. The flat bottom must be replaced with a conical or spiral-shaped hopper, which involves removing the existing floor, installing new support structures, and ensuring proper angle and material specifications. The fumigation system components—recirculation piping, injection points, monitoring ports, and safety sensors—can then be integrated. However, the cost and complexity of retrofitting often approach that of a new silo, especially for larger capacities. For most operations, a new hopper bottom silo with factory-integrated fumigation is more cost-effective and reliable.
