How much land does a farm storage facility require?

A small farm setup (2-3 silos + 1 dryer + receiving pit) fits in 1,500-3,000 m2; a medium farm (4-6 silos + dryer + cleaner + conveyors) needs 3,000-6,000 m2; a large farm (6-10 silos + central conveyor gallery + truck loading) needs 6,000-12,000 m2; commercial grain farms with integrated storage and drying use 12,000 m2 or more.

STEEL PLATE SILO
AGRICULTURAL USE

Intelligent design, cooling and mold prevention, balanced temperature and humidity

Get Farm Storage Quote >

Since 2000

Silo Manufacturer

9,000 ㎡

Factory Area

Worldwide

Export Markets

100–10,000 T

Capacity per Silo

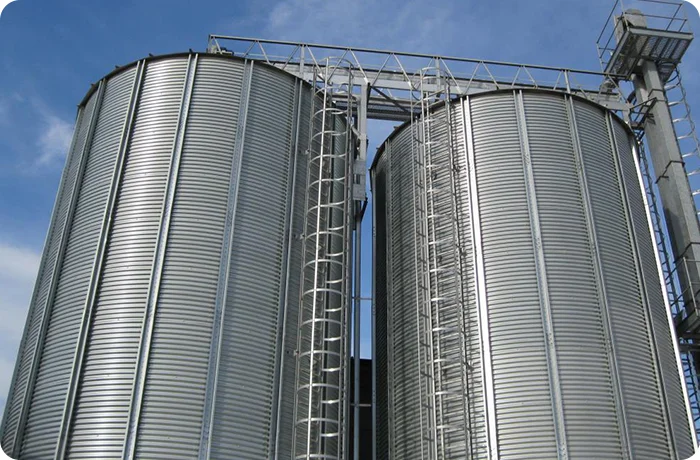

Agricultural use steel plate silo

Factory-direct supply | Free engineered layout | Installation support

Manxing Machinery's agricultural steel plate silo provides efficient and reliable storage solutions for modern farms. Its fully sealed design can effectively prevent moisture, insects, and rodents, significantly reducing post harvest losses of grain and ensuring grain quality and value. Modular structure installation is flexible, with adjustable capacity and convenient loading and unloading design, greatly saving manpower and time. Made of corrosion-resistant coated steel plate, sturdy and durable, with low maintenance costs. Scientific grain storage is an ideal choice for households, farms, and agricultural enterprises to solve the problem of grain storage.

Send Email > Get Farm Storage Quote >

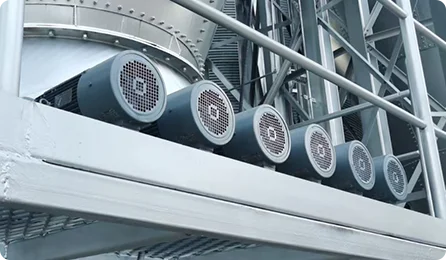

Ventilation system

It can effectively eliminate the accumulated heat caused by respiration and post ripening process during the initial storage of grain, and prevent mold and condensation caused by high local temperature and humidity.

Convenient loading and unloading design

It simplifies the loading and unloading process, achieving "safe, efficient, clean, and controllable" warehousing operations, which is a key link in improving the efficiency of the entire supply chain and reducing overall operating costs.

Loss prevention and preservation

Our company's Expertly crafted high-tension exterior stiffeners enhance the entire silo body, empowering the structure to withstand extreme weather conditions. Each stiffener undergoes extensive galvanization, preventing rust and ensuring exceptional durability over time.

Are You Facing These Farm Storage Challenges?

Common problems our farm grain storage solutions are built to solve

Moisture & Mold Losses

Grain stored too wet heats and molds — sealed silos with full-floor aeration and drying keep moisture under control all season.

Pests & Contamination

Insects and rodents destroy stored value — gas-tight sealed steel silos protect grain quality until the price is right.

Harvest Season Pressure

When harvest peaks, waiting for trucks or dryers costs money — on-farm storage lets you harvest at full speed.

Forced to Sell Low

Without storage you must sell at harvest lows — store safely and sell when the market pays more.

Select by Farm Type

Recommended storage solution for each crop scenario

Farm Type	Typical Crops	Typical Harvest Season	Recommended Storage Solution
Corn Farm	Corn (Maize)	High-moisture harvest	Wet grain bins + Continuous grain dryer + Flat bottom silos
Wheat Farm	Wheat	Dry harvest in many regions	Grain cleaner + Flat bottom silos + Aeration system
Rice Farm	Paddy Rice	High-moisture harvest	Wet grain bins + Continuous dryer + Flat bottom silos
Soybean Farm	Soybeans	Medium-moisture harvest	Grain cleaner + Medium-capacity silos + Aeration
Mixed Crop Farm	Corn, Wheat, Soybeans, Barley	Seasonal rotation	Multi-silo storage system with grain dryer (optional)
Seed Production Farm	Corn, Soybeans, Wheat Seeds	High quality preservation	Small-capacity silos + Precision drying + Temperature monitoring

Not sure which fits your farm? Send us your farm data and get a free engineered layout.

Reference: Typical Grain Bulk Densities

Per cubic metre — values vary with moisture content and variety

Wheat	0.77 t/m³
Canola	0.67 t/m³
Barley	0.68 t/m³
Triticale	0.68 t/m³
Sorghum	0.73 t/m³

Maize	0.72 t/m³
Lupins	0.80 t/m³
Mung beans	0.75 t/m³
Sunflower seed	0.42 t/m³
Cotton seed	0.40 t/m³

Bulk density directly affects silo sizing — our engineers calculate the exact volume for your crop mix. Get a free calculation →

Product Description

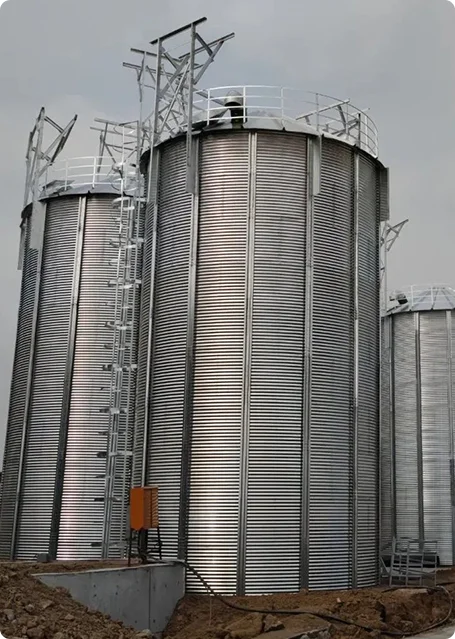

The structure includes reinforced stiffeners, wind rings, and a heavy-duty roof system designed to withstand wind, snow, and seismic loads.

APPLICATION

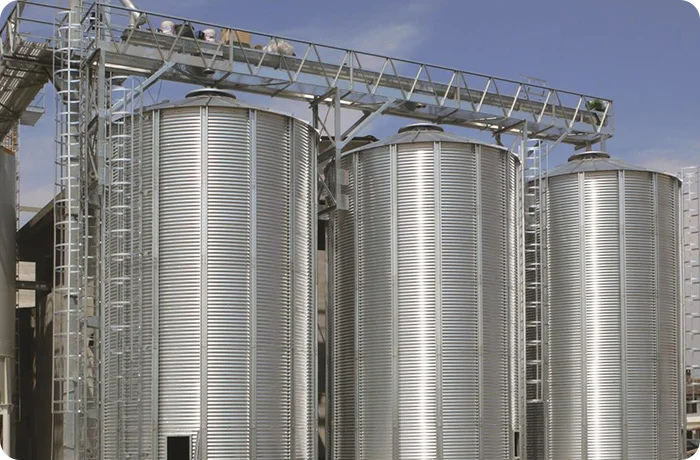

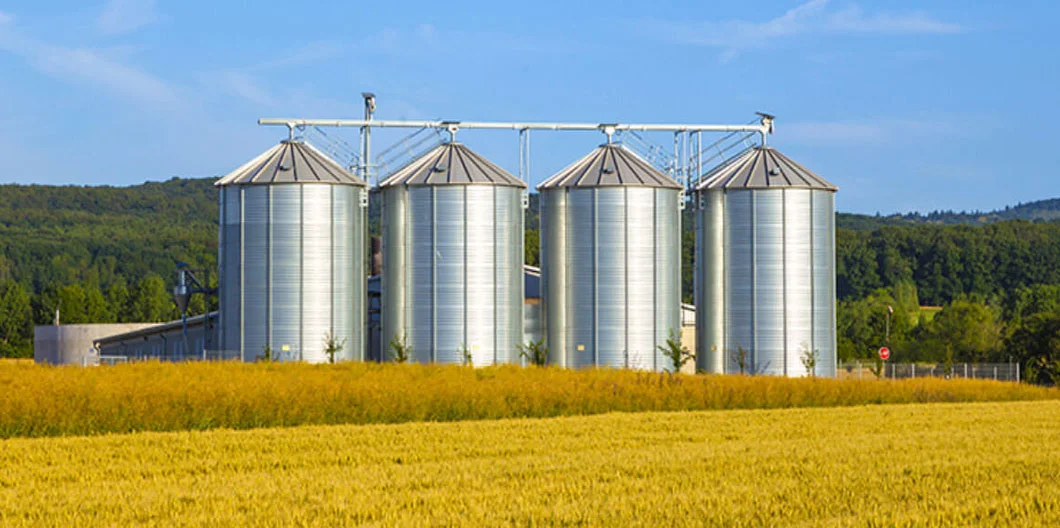

Farm Grain Silo Storage System

Farm grain storage is a critical part of modern agriculture. A properly engineered grain silo protects harvested crops from moisture, pests, temperature fluctuations, and post-harvest losses.

Manxing farm grain silos are widely used for medium and large-scale agricultural grain storage projects.

KEY FEATURES

Advantages of a Farm Grain Silo

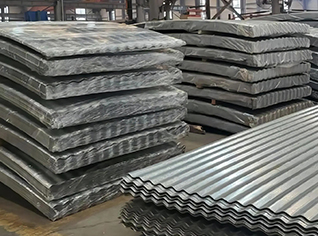

High-strength galvanized corrugated steel panels
Long service life (20–30 years)
Large storage capacity (500–15,000 tons)
Suitable for long-term bulk grain storage
Easy integration with conveying and drying systems

Get a Customized Farm Grain Storage Solution

Modern farms require more than just a silo structure. Our intelligent grain storage system integrates monitoring technology to improve safety and efficiency. Combined with our mobile grain dryers, it ensures grain enters storage at safe moisture levels. Contact our engineering team for a customized design proposal.

Auxiliary System

We can customize and design various auxiliary systems of grain silos to meet your production needs.

Grain Receiving System

Grain Handling System

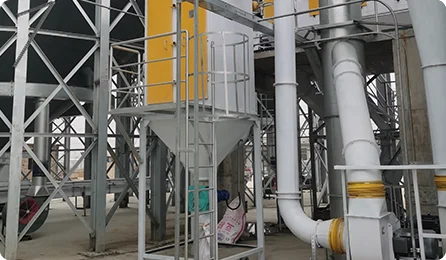

Pre-cleaning System

Dust Collecting System

Drying System

Feeding & Conveying System

Truck Loading System

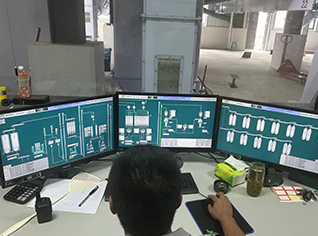

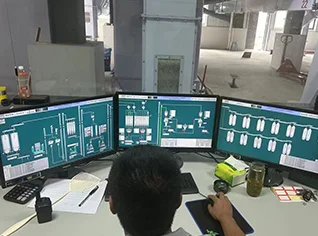

Automation Control

Application scenario

Agricultural silos are widely used for grain storage, such as wheat, corn, soybeans, rice, millet, soybean meal, barley, malt, sunflower seeds, rapeseed, peanut flour, oats, special grains and seeds, and other agricultural products.

Wheat

Corn/Maize

Soybean

Rice

Cocoa beans

Powdered substances
(flour, corn flour)

Farm grain storage is not just msl_about having a bin. It is msl_about harvest logistics — can you receive grain fast enough during peak season, and can you condition it properly after loading? We supply farm bins for small family farms and farm silos for sale for large commercial operations. An agricultural silo should match your harvester capacity and drying speed, not just your total annual volume.

For mixed-crop farms, a single big farm grain bin often stores wheat in one season and corn in the next. We also handle barn silos for sale and grain storage buildings for operators who prefer covered flat storage with mobile augers over tall silos. Our farm grain storage bins and farm silos are designed with these workflow questions in mind.

When you do onfarm storage of grain, site access, power supply, and truck turnaround all influence the design. Our agriculture silos come with foundation drawings and anchor bolt templates — local contractors handle the concrete, and our team can oversee the steel silo construction remotely or on-site.

For clients evaluating vertical grain silos, we compare the footprint, fill speed, and long-term maintenance so you make an informed decision. Farm grain silos for sale from Manxing are always shipped with full assembly documentation and phone support during erection.

Get Your Farm Storage Quote

Tell us your crop mix and harvest volume — our engineers will design the farm storage layout for you.

Free engineered layout · Factory-direct quote · Installation & commissioning support

Project location

Expected capacity of the silo

Material type

What is the final use?

Number of silos required

PCS

Is drying required?

Yes

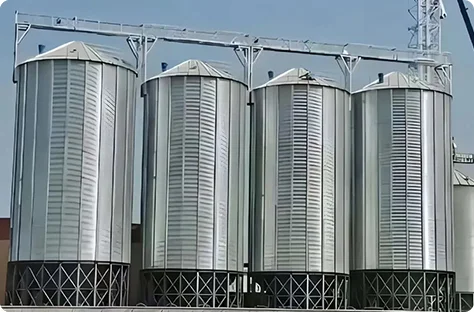

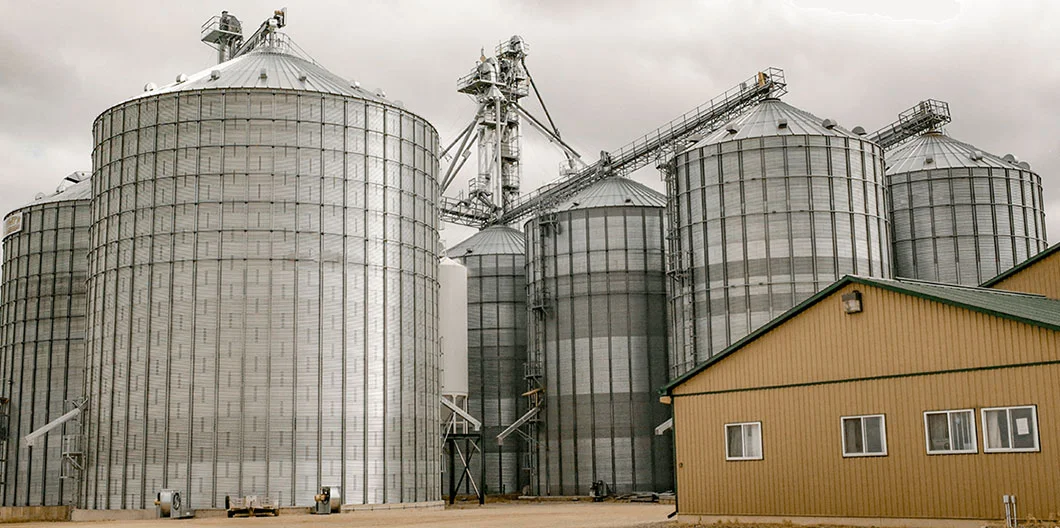

Farm Storage Project Cases

Engineered farm grain storage facilities delivered by Manxing

12,773t farm storage facility with six 1000t flat-bottom silos

Total Storage Capacity: ≈12,773 T

Six 1,000t flat-bottom Manxing silos added to the existing shed and silo storage. High-capacity fans with full-floor aeration; one silo has sufficient aeration capacity for ambient air drying of grain.

64,000t on-farm storage facility with two 12,000t silos

Total Storage Capacity: ≈64,000 T

Two new 12,000t Manxing silos added to an already sizeable facility, utilising the existing in-loading tower. All storages are gas-tight sealable with aeration cooling; each 12,000t silo has twelve EC motor-driven fans.

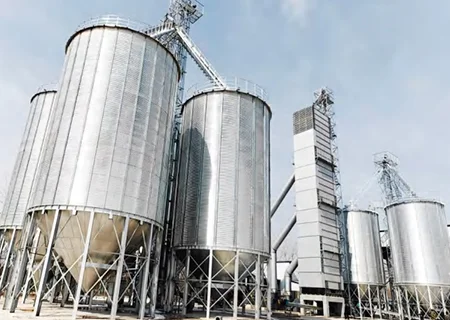

3,000t farm facility with integrated grain dryer

Total Storage Capacity: ≈3,000 T

Existing Manxing silos integrated with a Manxing grain dryer, reclaim and rotary cleaning capacity. The feeding line shifts wet grain at 60t/h into the dryer; outload to trucks is around 100t/h.

15,000t staged farm storage facility with six 1,500t silos

Total Storage Capacity: ≈15,000 T

A staged construction site: six new 1,500t flat-bottom silos complement existing 120t and 126t silos consolidated from other farms. Expansion planned with allowances for an in-loading elevator.

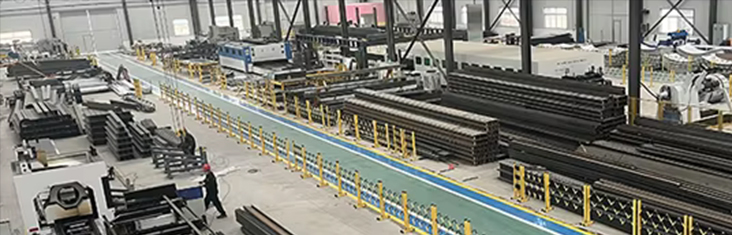

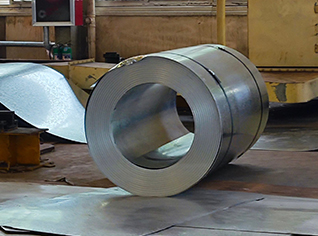

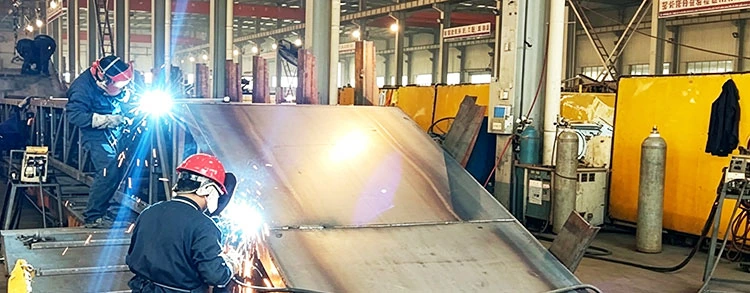

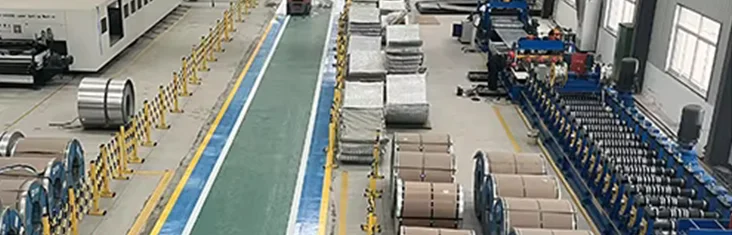

Factory Display

Production equipment and raw material testing, casting good products

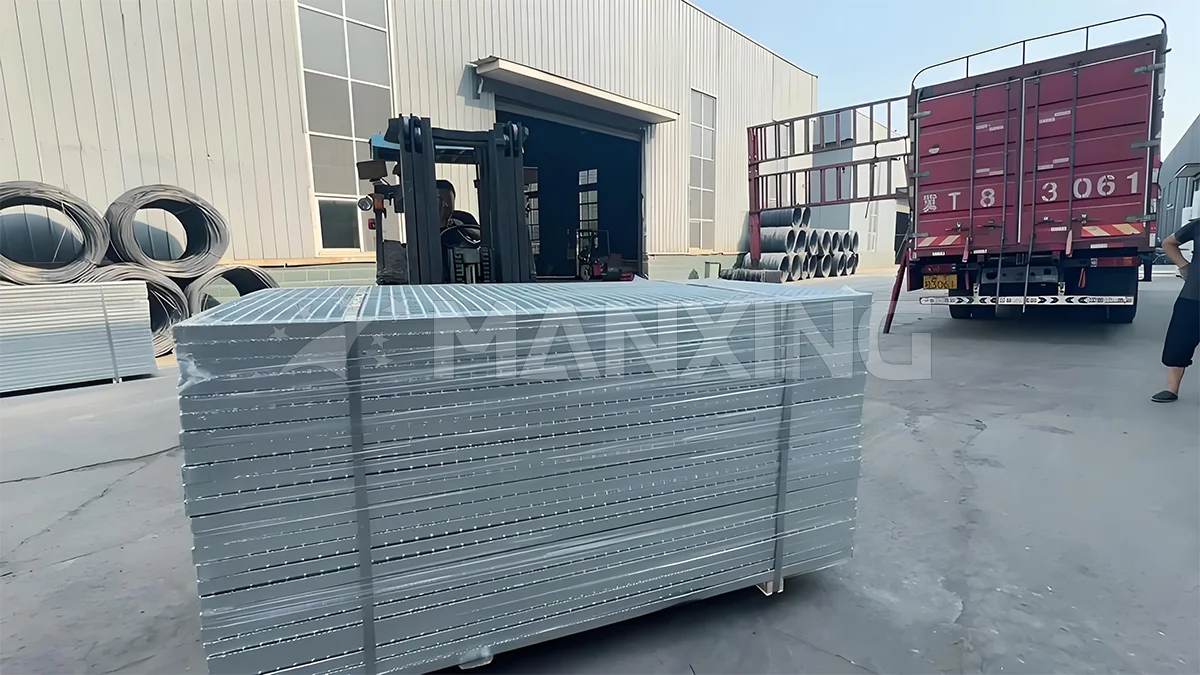

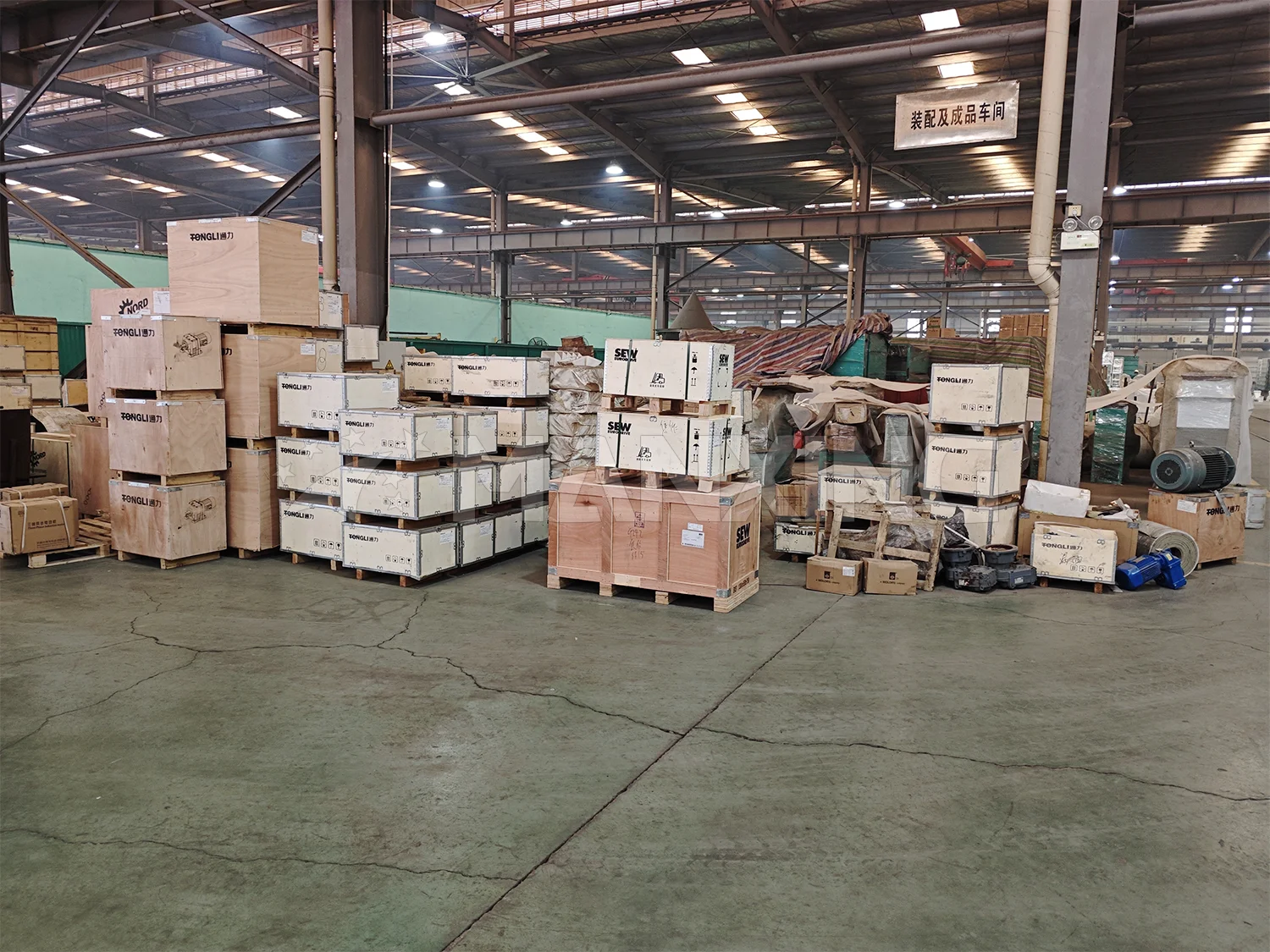

Shipping & Delivery

Every order is carefully packed and shipped to ensure safe arrival worldwide

Farm Grain Storage FAQ

How to choose the right storage solution for your farm

Match capacity to your annual grain production: farms of 100–300 ha typically need 500–2,000 T; 300–800 ha need 2,000–5,000 T; 800–2,000 ha need 5,000–15,000 T; farms over 2,000 ha may need 15,000–40,000 T. Your daily harvest capacity then determines the dryer size, from 5 T/H up to 100 T/H.

Under 3 months: basic silos with aeration are enough. 3–6 months: add a grain dryer. 6–12 months: add temperature monitoring and PLC control. Over 12 months (seed or export grain): premium sealed storage with advanced monitoring and ventilation is recommended.

If you harvest grain above safe storage moisture or store longer than 3 months, yes. A 100–200 T/day harvest typically pairs with a 5–10 T/H dryer; 500–1,000 T/day needs 20–40 T/H; 1,000–2,000 T/day needs 40–80 T/H. A wet grain buffer silo keeps the dryer running continuously.

A small farm setup (2–3 silos + 1 dryer + receiving pit) fits in 1,500–3,000 m²; a medium farm (4–6 silos + dryer + cleaner + conveyors) needs 3,000–6,000 m²; a large farm (6–10 silos + central conveyor gallery + truck loading) needs 6,000–12,000 m²; commercial grain farms with integrated storage and drying use 12,000 m² or more.

Yes. Most Manxing farm projects are built in stages — many customers start with 2–3 silos and a dryer, then add flat-bottom silos, elevators and handling equipment as production grows. We plan the layout for future expansion from day one.

Corn, wheat, rice/paddy, soybeans, barley, sorghum and oilseeds — silo type and aeration are selected according to each crop's bulk density and moisture sensitivity, and seed farms get precision drying plus temperature monitoring for maximum germination preservation.
