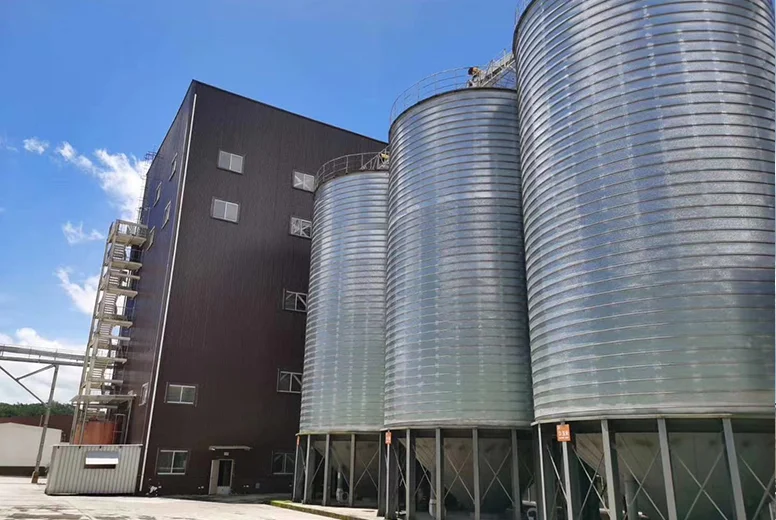

Hopper bottom silo with easy unloading

In the realm of bulk material storage, efficiency, safety, and reliability are paramount. The hopper bottom silo with easy unloading features stands out as a sophisticated solution tailored to meet these demands. Its innovative design not only optimizes material management but also streamlines operational workflows, making it an essential asset across various industries such as agriculture, construction, and mining.

Features of Hopper Bottom Silo with Easy Unloading

1. Conical or Hopper-Shaped Bottom for Gravity-Assisted Discharge
At the core of this silo’s design is its conical or tapered bottom—commonly referred to as the hopper—that leverages gravity for effortless unloading. This shape ensures that stored materials naturally flow toward the outlet, minimizing blockages and reducing the need for external forces such as vibrators or augers, thereby enhancing operational efficiency and safety.

2. Low-Pressure Design for Fast Material Flow
The structure employs a low-pressure design with appropriate flaring angles (typically between 40° to 60°), which ensures a smooth and consistent flow of bulk materials. The design parameters are carefully calculated to prevent bridging and arching, especially critical when handling cohesive or fine materials.

3. Integrated Unloading Systems
Many hopper bottom silos incorporate specialized outlets equipped with manual or automated sliding gates, chutes, or pneumatic conveying systems. These components facilitate controlled and uniform discharge, critical when handling fragile or sensitive materials.

4. Robust Materials and Corrosion Resistance
Constructed from galvanized steel, stainless steel, or reinforced concrete, these silos are designed to withstand harsh environmental conditions. Corrosion-resistant features extend the lifespan of the silo, ensuring long-term, low-maintenance operation.

5. Compact Footprint with Modular Configurations
Innovative modular design allows the silo to be tailored to specific storage capacities, from small-scale units to large industrial installations, all while maintaining a compact footprint suitable for constrained sites.

Applications and Industry Use Cases

The hopper bottom silo with easy unloading is versatile across various sectors:

• Agriculture: Ideal for storing grains, seeds, or animal feed, ensuring quick and contamination-free unloading during harvest seasons or routine feeding operations.
• Construction: Used to store cement, fly ash, and other powders, with rapid discharge facilitating continuous supply at construction sites.
• Mining and Minerals: Suitable for storing bulk minerals like ore or coal, where quick and complete discharge is essential for downstream processing.
• Chemical and Food Industries: Compatible with sensitive materials that require gentle handling and minimal contamination risk.

Technical Parameters and Design Considerations

parameters is vital for selecting the appropriate hopper bottom silo:

Design solutions often involve optimizing the hopper angle and outlet size to minimize residual material (hanging or rat-holing), ensuring continuous flow. Computational Fluid Dynamics (CFD) simulations are increasingly employed to model material flow behavior, guiding structural modifications for enhanced performance.

Innovative Solutions for Easy Unloading Challenges

• Automated Gate Control: Integration of sensors and PLC systems facilitates real-time regulation of discharge, reducing manual oversight and improving safety.
• Vibration and Aeration Devices: When handling cohesive or sticky materials, combining unobtrusive vibration units or aeration channels ensures a uniform flow and prevents arching.
• Modular Discharge Systems: Customizable chutes and slide gates enable adaptability to different material types and flow rates without extensive modifications.

Final Thoughts

The hopper bottom silo with easy unloading features epitomizes modern bulk storage solutions, emphasizing operational efficiency, safety, and durability. Its intelligent design, rooted in structural optimization and advanced engineering, caters to the diverse needs of industries dealing with granular, powdery, or free-flowing bulk materials. As technology advances, further integration of automation and flow control will solidify its role as an indispensable asset in efficient bulk material management.

Choosing the right design parameters and leveraging innovative solutions will ensure maximum productivity, safety, and longevity for your storage infrastructure, transforming the way materials are stored and discharged across sectors.
