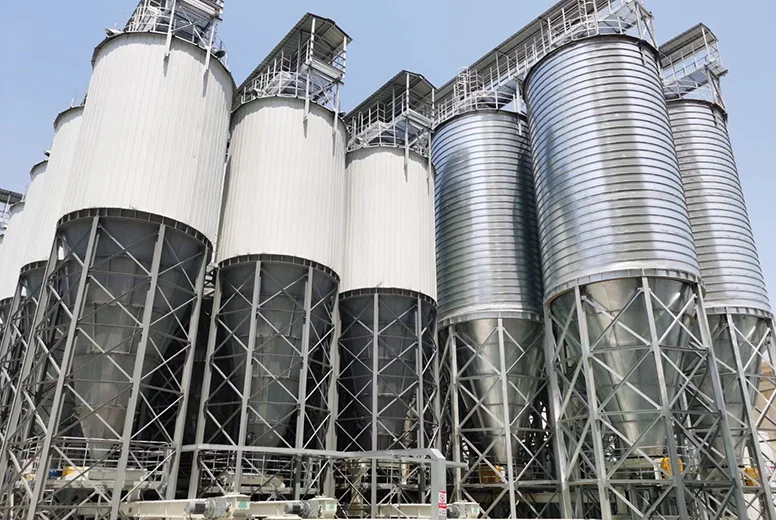

Hopper bottom silo for storage and drying

In the realm of bulk material storage and processing, hopper bottom silos have emerged as a pivotal innovation, especially in industries such as agriculture, construction, and manufacturing. Their unique design facilitates efficient storage, unloading, and, notably, integrated drying processes.

Unique Features of Hopper Bottom Silos

1. V-Shaped, Self-Draining Design:
At the core of a hopper bottom silo's functionality is its conical or V-shaped interior that directs stored bulk materials towards a central outlet. This geometrical precision ensures thorough self-draining, preventing residual material buildup that can compromise storage integrity or promote spoilage.

2. Gravity-Assisted Discharging:
Unlike flat-bottomed tanks, hopper silos rely predominantly on gravity for discharging materials. This inherently reduces the need for mechanical agitators, resulting in lower operational costs and decreased maintenance.

3. Integration with Drying Systems:
Advanced hopper silos can be equipped with integrated drying capabilities through the installation of dryers or circulation systems. The conical design allows hot air or other drying media to circulate through stored materials evenly, ensuring uniform moisture reduction.

4. Structural Stability and Material Choice:
Constructed from durable metals like steel or coated composites, hopper bottom silos are engineered to withstand internal pressures and external environmental stresses. Their tapering shape contributes to structural strength, supporting large-scale storage needs.

Applications of Hopper Bottom Silos

1. Agricultural Grain Storage and Drying:
Hopper silos are widely used to store cereals, maize, soybeans, and other grains. Their design facilitates easy unloading and drying, essential for maintaining grain quality over extended periods.

2. Feed Storage in Livestock Farming:
Producers utilize hopper silos for storing livestock feeds, where moisture content and cleanliness are critical. Drying features integrated into the silo help prevent mold and spoilage.

3. Industrial Bulk Material Storage:
In industries such as cement, chemicals, or minerals, hopper silos serve as reliable containers that support continuous feed and discharge of raw materials, often with optional drying systems to control moisture.

4. Construction Material Storage:
Aggregates like sand or gravel are stored efficiently within hopper silos, with the conical shape facilitating constant flow, especially in batching plants.

Parameters and Technical Considerations

specific parameters helps tailor hopper silo solutions to diverse operational needs:

• Capacity: Ranges from a few cubic meters to thousands, determined by the volume of stored material.
• Outlet Size & Discharge Rate: Critical for matching operational flow rates, with larger outlets enabling faster unloading.
• Hopper Angle: Typically varies between 45° to 60°, influencing flow efficiency and structural load.
• Material Compatibility: Selection of silo materials must account for stored material properties, such as abrasiveness, corrosiveness, or moisture susceptibility.
• Drying Capacity: For silos with integrated drying, parameters like drying temperature, airflow rate, and humidity control are optimized based on material type and moisture content.

Innovative Solutions and Technical Enhancements

1. Temperature and Moisture Monitoring:
Modern hopper silos incorporate sensors that provide real-time data, guiding drying cycles and preventing spoilage.

2. Fluidized Bed Dryers:
Some advanced silos integrate fluidized bed or vibratory feeders to enhance drying efficiency and ensure uniform moisture removal.

3. Modular Design for Scalability:
Modular silos allow expansion as storage demands grow, with interchangeable drying modules for flexible application.

4. Automated Discharge Control:
Automated systems regulate flow rates, minimize material segregation, and optimize residence time during drying.

Hopper bottom silos represent a synthesis of structural ingenuity and process optimization, fundamentally transforming storage and drying strategies for bulk materials. Their distinctive V-shaped design, combined with optional integrated drying features, offers versatile and efficient solutions tailored to diverse industries. For operators seeking to maximize storage capacity while ensuring high-quality, moisture-controlled material management, investing in a well-designed hopper bottom silo can dramatically improve productivity, shorten turnaround times, and reduce operational costs.

By comprehensively the technical features, applications, and optimal parameter configurations, stakeholders can harness the full potential of hopper bottom silos, driving technical innovation and operational excellence in the storage and drying processes for a sustainable future.
