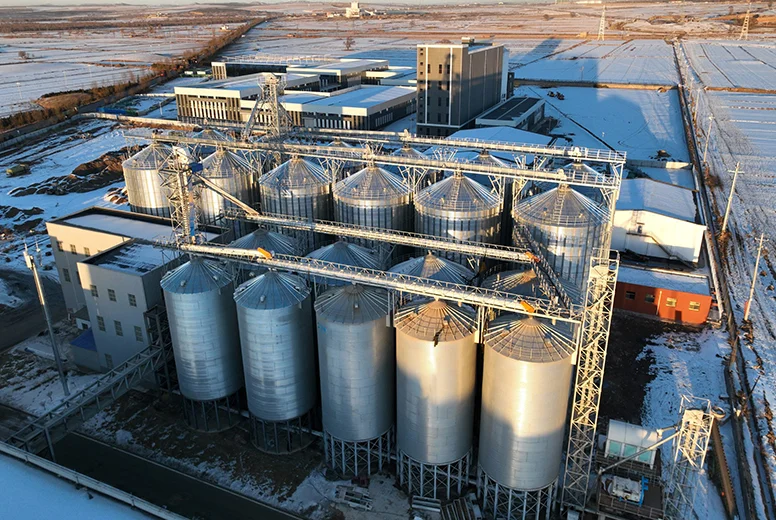

Hopper bottom silo installation

In the realm of bulk storage and grain handling, hopper bottom silos have become a preferred choice for their efficiency, ease of discharge, and structural advantages. Proper installation of hopper bottom silos is crucial to optimize performance, ensure safety, and extend the lifespan of the storage system.

Features of Hopper Bottom Silos

Hopper bottom silos are designed with a conical or sloped bottom that facilitates gravity-assisted discharge of stored materials. This design inherently offers several technical benefits:

• Efficient Material Flow: The inclined hopper angle promotes uniform flow of grains, powders, or granular materials, reducing bridging and rat-holing phenomena common in flat-bottom silos.
• Ease of Discharge: The conical outlet minimizes the residual material left in the silo, ensuring quick and complete unloading.
• Structural Durability: Constructed from reinforced steel, fiberglass, or reinforced concrete, hopper silos are engineered to withstand environmental stresses and material loads.
• Versatile Capacity Range: From small farm silos to large industrial storage units, hopper bottom silos accommodate diverse capacity requirements.

Applications of Hopper Bottom Silos

Hopper bottom silos are widely applied across sectors where bulk material storage is critical:

• Agriculture: Grain storage for wheat, maize, soybean, and other cereals.— their rapid unloading capabilities fit well with harvest cycles.
• Industrial Usage: Storage of materials such as cement, chemicals, and minerals where quick, clean discharge is necessary.
• Food Processing: Storage of powders and granular ingredients, ensuring hygiene and ease of handling.
• Feed Industry: Efficiently storing and discharging animal feed.

The to successful application lies in tailored design and precise installation, especially because the operational environment and material properties influence optimal silo performance.

Technical Parameters and Design Considerations

A technically sound installation hinges on precise of parameters:

• Silo Capacity: Determines the size of the silo and weight load; typical capacities range from a few cubic meters to thousands.
• Hopper Angle: Usually between 45° to 60°, influencing flow pattern and discharge efficacy. A lower angle may improve flow for sticky or humid materials.
• Discharge Outlet Size: Must be designed considering throughput rates, flow characteristics of the stored material, and size of associated conveying equipment.
• Foundation Load-Bearing Capacity: The silo's foundation must support not only the silo’s weight but also dynamic loads during filling and discharge.

During installation, reinforced foundations are instrumental to prevent settlement and tilting. Additionally, sidewall and hopper steel thickness, corrosion protection, and sensor placements for material level monitoring are vital parameters that must be carefully managed.

Innovative Solutions and Best Practices in Installation

From a distinctive technical angle, several innovative approaches enhance hopper bottom silo installation:

• Foundation Optimization: Utilizing geotechnical surveys to design custom foundations, minimizing bearing pressure and enabling rapid installation even in challenging terrains.
• Modular Design Integration: Prefabricated modules enable quicker assembly and minimize downtime, especially in large-scale industrial setups.
• Sealing and Ventilation: Advanced sealing technologies and aeration systems contribute to maintaining material quality and preventing moisture ingress during storage.
• Automated Discharge Control: Installation of level sensors and automated flow controllers improves operational safety and efficiency.
