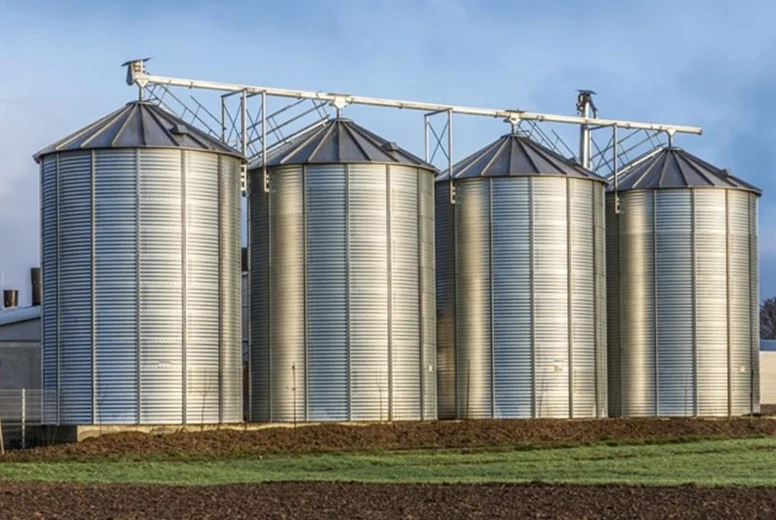

Custom flat bottom silo design

In the realm of bulk material storage, the custom flat bottom silo stands out as a versatile and efficient solution tailored to meet diverse industrial needs. Unlike traditional conical or ribbed silos, flat bottom silos are engineered with attention to specific features, application requirements, and technical parameters that enhance performance, safety, and operational efficiency.

Features of Custom Flat Bottom Silos

1. Structural Flexibility and Customization:
One of the advantages of flat bottom silos is their highly customizable design. They can be tailored in terms of size, capacity, and height to suit specific storage demands. The flat-bottom design allows for easier integration with existing infrastructure and facilitates modifications in loading and unloading systems.

2. Improved Material Discharge Efficiency:
Flat bottoms promote uniform material flow, minimizing bridging and rat-holing issues common in other silo types. Incorporating aeration pads or fluidization systems beneath the flat bottom further enhances discharging efficiency, especially for cohesive or fragile materials.

3. Enhanced Structural Strength:
Designed with precise engineering calculations, flat bottom silos accommodate various load capacities, ensuring durability under heavy loads. Reinforced steel or concrete construction options expand their application scope, supporting the storage of large quantities of bulk materials like cement, fly ash, or mineral powders.

4. Ease of Inspection and Maintenance:
The flat bottom configuration simplifies inspection and maintenance procedures. Clean-out ports, access hatches, and manholes can be integrated seamlessly, enabling efficient sanitation and inspection routines critical for maintaining material quality.

Applications of Custom Flat Bottom Silos

1. Cement and Mineral Storage:
In cement plants and mineral processing facilities, flat bottom silos provide large-capacity storage with straightforward discharge control. Their ability to be custom-designed ensures optimal integration with conveying and bagging systems.

2. Agricultural and Feed Storage:
Agricultural operations benefit from the adaptability of flat bottom silos for storing grains, seeds, and feed. The design facilitates easy loading, mixing, and retrieval, crucial for maintaining feed quality and preventing spoilage.

3. Chemical and Fertilizer Industries:
Chemical storage requires specific containment features. Custom flat bottom silos can be designed with corrosion-resistant linings and features to prevent accidental leaks, ensuring compliance with safety standards.

4. Power and Energy Sectors:
For storing materials like coal or biomass, flat bottom silos optimize space utilization and support rapid unloading during power generation processes.

Technical Parameters and Design Considerations

Designing an effective flat bottom silo involves meticulous calculation of several parameters:

• Capacity & Volume: Determined by feed rate, storage period, and plant scalability. For instance, a typical medium-sized silo might hold 500–2000 tons.
• Silo Diameter & Height: Calculated based on volume requirements; larger diameters provide more uniform flow but require stronger structural support.
• Wall Thickness & Material: Dependent on material weight, pressure, and environmental conditions. Reinforced steel or concrete are common choices for heavy-duty applications.
• Foundation & Structural Support: Must accommodate the static and dynamic loads, considering soil conditions and seismic factors.
• Discharge System: Includes outlet gates, aeration pads, or fluidization beds, which are selected according to the material's flow characteristics.

Innovative Solutions and Best Practices

Integrating Modular Components:
Custom flat bottom silos incorporate modular sections that facilitate transportation, assembly, and scalability. This approach minimizes installation time and adapts to evolving storage needs.

Smart Monitoring Systems:
Embedding sensors for level detection, temperature, and structural integrity provides real-time data, enabling predictive maintenance and preventing costly downtimes.

Advanced Materials & Coatings:
Using corrosion-resistant coatings or composite materials extends silo longevity, especially in harsh environments or when storing aggressive chemicals.

Environmental & Safety Compliance:
Design features such as vapour control, dust extraction systems, and explosion-proof components ensure compliance with safety standards, protecting personnel and the environment.
