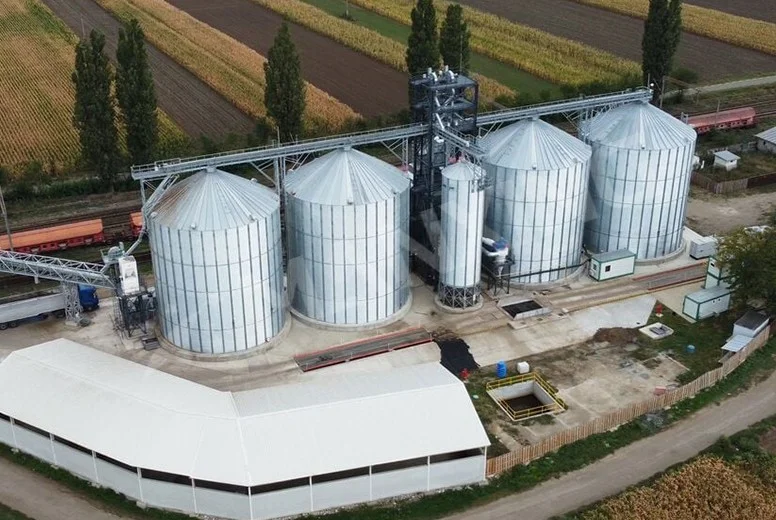

Choosing the wrong grain handling equipment can silently cost you up to 5% of your grain in breakage and hidden losses annually. This technical guide provides a deep dive into bucket elevators, drag conveyors, screw augers, and belt conveyors, helping you make a precise investment decision based on your operation scale, capacity needs, and material characteristics. We focus on the engineering logic that prevents costly mistakes and maximizes your return on investment.
Core Types of Grain Conveying Equipment and Their Selection Logic
Modern grain handling systems are not single machines but a coordinated network of vertical, horizontal, and inclined conveying units. Understanding the physical principles and application boundaries of each equipment type is crucial to avoid over-specification or creating a capacity bottleneck. Industry standards typically classify grain moving equipment into four main categories: bucket elevators (vertical lifting), drag conveyors (horizontal/inclined), screw conveyors (horizontal/inclined, also known as augers), and belt conveyors (long-distance horizontal/inclined).
The primary parameter for selection is not price but hourly throughput (BPH, bushels per hour) and the material damage rate. For example, soybeans and corn have vastly different sensitivities to mechanical impact. According to data from equipment manufacturer Sudenga Industries, large commercial bucket elevators can achieve capacities exceeding 40,000 BPH. However, when handling high-shatter-susceptibility grains, a low-speed, low-lift design is mandatory. Therefore, the selection process must start from a "material characteristics – conveying path – peak capacity" triangular model. This model ensures that each component in your system is matched to the specific demands of your grain and your facility layout.
Matching Conveying Equipment to Your Operation Scale
Different scales of operation have vastly different requirements for reliability, maintenance costs, and automation. A small farm may prioritize portability and price, while a large commercial terminal must focus on continuous operation and low failure rates. We analyze three typical scenarios below to guide your selection process.
Small Farms & Transfer Stations: Flexibility and Cost-Effectiveness
For small farms and local transfer stations handling less than 10,000 bushels per day, portability and low initial investment are key. Portable screw augers are the most common choice due to their low cost and ease of movement between bins. However, these augers can cause higher grain damage if not operated at the correct speed. For gentle handling of seed corn or soybeans, a small-diameter, low-speed drag conveyor is a better, albeit more expensive, alternative. The trade-off is between upfront savings and long-term grain quality preservation.
Medium-Sized Commercial Operations: Balancing Throughput and Durability
Medium-sized operations, such as regional elevators handling 10,000 to 50,000 bushels per day, require a balanced approach. A combination of a bucket elevator for vertical lift and a belt conveyor for long horizontal runs offers the best mix of high capacity (up to 20,000 BPH) and low grain damage. Belt conveyors are particularly favored for their gentle handling and low power consumption over distances exceeding 200 feet. Drag conveyors are also used here for enclosed, dust-tight movement between processing stages, though they require more maintenance due to chain and sprocket wear.
Large Commercial Terminals: Continuous Operation and Low Failure Rates
Large commercial terminals and export facilities, moving over 50,000 bushels per day, demand the highest reliability. Here, heavy-duty bucket elevators with capacities exceeding 40,000 BPH are standard for vertical lift. For horizontal conveying, high-capacity belt conveyors (often 60 inches wide or more) are used for their ability to move grain over long distances with minimal degradation. Drag conveyors are reserved for specific, enclosed paths where spillage must be eliminated, such as under railcar unloading pits. Automation and remote monitoring are essential to ensure continuous operation and to schedule preventive maintenance before failures occur.
Key Takeaways
- Key Data: Large commercial bucket elevators can achieve capacities exceeding 40,000 BPH, but must be designed with low-speed options for fragile grains.
- Best Practice: Always start your selection process with the "material characteristics – conveying path – peak capacity" triangular model to avoid mismatched components.
- Watch Out For: Over-specifying equipment for small farms can waste capital, while under-specifying at commercial terminals creates costly bottlenecks and downtime.
- Pro Tip: For high-shatter-susceptibility grains like soybeans, prioritize belt conveyors and low-speed bucket elevators over screw augers to reduce breakage losses.
- Bottom Line: The right grain handling equipment is not just about moving grain—it's about preserving its value through minimal damage and maximum uptime.
Critical Design Parameters for Grain Handling Equipment
Beyond scale, several technical parameters dictate the optimal choice. The first is the conveying distance and angle. Bucket elevators are ideal for vertical lifts up to 300 feet, while belt conveyors excel on long, gentle inclines (up to 18 degrees). Drag conveyors can handle inclines up to 45 degrees but with reduced capacity. The second parameter is the material's angle of repose and flowability. Free-flowing grains like corn and wheat move easily through most systems, but sticky or high-moisture grains may require specialized screw conveyors with larger pitch or liners. Finally, consider the environmental conditions: dust explosion risks demand enclosed, spark-resistant designs, especially in bucket elevators and drag conveyors where friction points are present.
Frequently Asked Questions
Q: What is the single most common mistake buyers make when selecting grain handling equipment for a new facility?
A: The most common mistake is prioritizing price over the material damage rate. Many buyers choose a high-speed bucket elevator or a standard screw auger because it is cheaper, only to discover that they are losing up to 5% of their grain value annually due to breakage. For operations handling high-value or fragile grains like soybeans, the incremental cost of a low-speed, gentle-handling system is quickly recovered through reduced losses. Always calculate the total cost of ownership, including grain loss, before making a decision.
Q: How do I determine if I need a drag conveyor or a belt conveyor for horizontal grain movement?
A: The choice depends on distance, capacity, and enclosure requirements. Belt conveyors are generally preferred for distances over 200 feet and capacities above 10,000 BPH because they offer lower power consumption and gentler handling. Drag conveyors, however, are superior for shorter, enclosed paths where dust containment is critical, such as under unloading pits or between processing units. They also handle high-moisture or sticky grains better than belt conveyors. For most medium-sized operations, a belt conveyor is the more economical and efficient choice for long runs.
Q: What maintenance schedule is recommended for a bucket elevator in a high-capacity commercial terminal?
A: For a commercial bucket elevator operating at over 40,000 BPH, a rigorous preventive maintenance schedule is essential. Daily inspections should include checking belt tension, tracking, and listening for unusual noises. Weekly, inspect the buckets for wear or damage and lubricate all bearings. Monthly, perform a detailed check of the head and boot pulleys, including lagging wear. Annually, replace worn belts and buckets as a set to maintain balance. Any deviation from this schedule can lead to catastrophic belt failure, resulting in days of downtime and significant repair costs.
Q: Can I use a single type of conveyor for both vertical and horizontal movement to simplify my system?
A: While some equipment, like inclined drag conveyors or screw augers, can handle both vertical and horizontal movement, this is rarely the most efficient solution. Dedicated bucket elevators for vertical lift are far more energy-efficient and have higher capacity per unit of cross-section. Combining functions in one machine often leads to compromises in speed, capacity, or grain damage. For example, an inclined screw auger used for both lifting and horizontal movement will have a much lower capacity than a separate bucket elevator and belt conveyor system. For any operation above a small farm scale, a dedicated system is almost always the better investment.
Q: How does grain moisture content affect the selection of conveying equipment?
A: Moisture content significantly impacts flowability and the risk of bridging or sticking. For high-moisture grain (above 18%), screw conveyors with a larger pitch and optional liners are often preferred because they can handle sticky material without clogging. Belt conveyors also work well but require more frequent cleaning of the belt surface. Bucket elevators can handle high-moisture grain, but the design must include larger discharge openings to prevent material from sticking to the buckets. Drag conveyors are generally not recommended for very sticky grain due to the potential for material buildup on the chain and sprockets, which increases wear and power consumption.
Q: What safety features are mandatory for grain handling equipment in modern facilities?
A: Modern grain handling equipment must include several critical safety features to comply with industry standards and prevent accidents. Essential features include: (1) explosion vents or suppression systems on bucket elevators and enclosed conveyors to mitigate dust explosion risks; (2) emergency stop pull cords along the entire length of belt and drag conveyors; (3) belt alignment and speed monitoring switches to detect slippage or misalignment; (4) guarding on all moving parts, including head and tail pulleys; and (5) lockout/tagout capabilities for maintenance. Additionally, for bucket elevators, a belt slip monitor and bearing temperature sensors are highly recommended to prevent fires.
