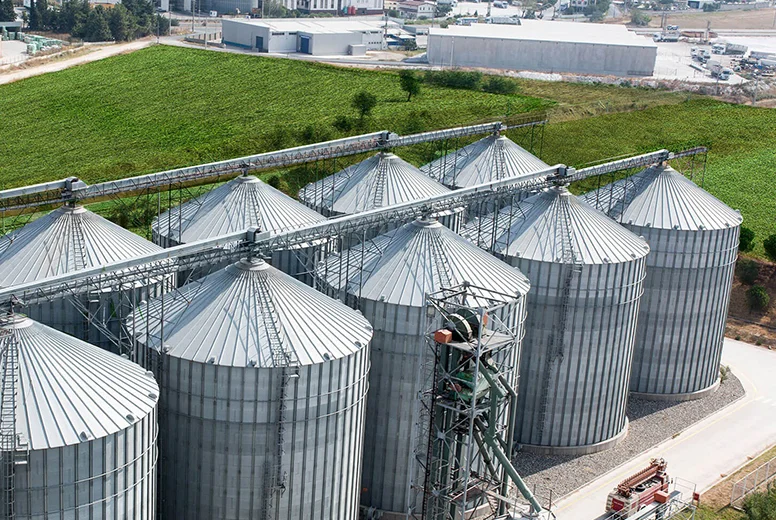

2000 ton flat bottom silo

In the realm of bulk material storage, the 2000-ton flat bottom silo stands out as a robust and efficient solution. Designed to accommodate large volumes of materials such as cement, fly ash, grain, or other powders, this silo type is pivotal for industries requiring reliable storage with minimal contamination and ease of discharge.

Unique Features of the 2000-Ton Flat Bottom Silo

1. Structural Simplicity and Strength:
The flat bottom configuration provides a straightforward structural design, which simplifies manufacturing and installation processes compared to conical-bottom silos. The horizontal bottom plate, supported by reinforced steel rings and vertical columns, ensures uniform load distribution, making it highly durable under heavy storage volumes.

2. Efficient Discharge Mechanism:
Perhaps the most distinguishing feature is the silo’s bottom outlet, typically equipped with high-capacity rotary valves or twin wall flow bins. The flat bottom allows for gravity-assisted discharge, reducing the risk of material bridging or rat-holing—common issues in silos with sloped or conical bottoms.

3. Ease of Maintenance and Inspection:
Flat bottom silos facilitate easier inspection and maintenance of the outlet valves and internal surfaces. The accessible design ensures quicker troubleshooting, minimizing downtime — a crucial factor for continuous industrial operations.

4. Corrosion and Weather Resistance:
Constructed with high-grade steel and complemented with protective coatings, flat bottom silos can be tailored to withstand harsh environmental conditions. The flat surface also reduces water accumulation, decreasing corrosion risks over the long term.

Applications of the 2000-Ton Flat Bottom Silo

The versatility of this storage system finds it integral across multiple industries:

• Cement Industry:
  Efficiently storing clinker, cement powder, or supplementary cementitious materials, facilitating rapid loading into bulk carriers or transportation vehicles.

• Mining and Minerals:
  Housing fine ores and mineral powders, enabling seamless extraction processes and minimizing material degradation.

• Agricultural Sector:
  Storing large volumes of grain, soy, or other agricultural products with easy access for the feeding systems.

• Power Plants:
  Storing pulverized coal or fly ash, supporting ongoing combustion processes and pollutant control systems.

Technical Parameters and Design Considerations

parameters influence the selection and design of a 2000-ton flat bottom silo:

• Capacity:
  Typically, the volume ranges from approximately 2,000 cubic meters, correlating directly to the 2000-ton storage capacity—assuming bulk densities around 1 ton/m³. Precise capacity calculations account for material density variations.

• Silo Height and Diameter:
  A standard configuration might involve a diameter of 15–20 meters with a height of 20–25 meters. These dimensions balance between structural stability, material flow, and spatial constraints.

• Material Strength and Thickness:
  Steel plate thickness varies based on expected internal pressures, with thicker walls on the bottom due to higher stress concentrations. Reinforced steel rings at intervals provide lateral stability.

• Discharge Outlets:
  Designed to handle high flow rates, with size and number tailored to material flow characteristics, ensuring consistent discharge without bridging.

• Foundation and Support:
  The flat bottom requires a concrete foundation designed to withstand the silo’s weight, factoring in soil bearing capacity and potential seismic considerations.

Innovative Solutions and Optimization Strategies

Addressing modern storage challenges, engineers integrate several solutions into 2000-ton flat bottom silos:

• Modular Design:
  Allowing easy expansion or reconfiguration based on future capacity requirements.

• Instrumentation and Monitoring:
  Embedding level sensors, pressure gauges, and integrated automation systems to optimize inventory management and operational safety.

• Insulation and Climate Control:
  Incorporating insulation layers or climate control measures to prevent material deterioration, especially in humid or extreme environments.
