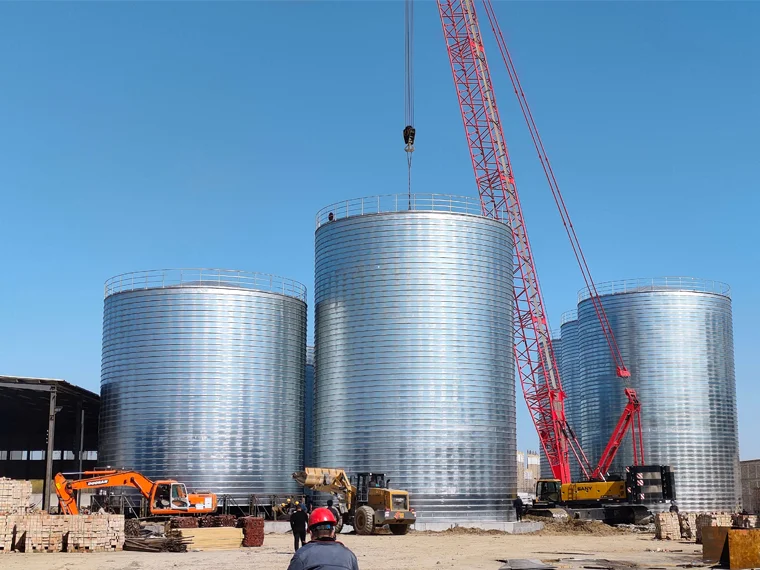

A steel silo’s design lifespan typically ranges from 20 to 35 years, but with expert engineering, premium materials, and a disciplined maintenance regimen, this can be extended to 40 years or more. The real determinant of longevity is not just the steel itself, but the interplay of design accuracy, environmental exposure, and the owner’s commitment to proactive care. Understanding these variables is the first step to avoiding catastrophic failures and maximizing your return on investment.
Core Determinants of Steel Silo Lifespan: Design and Material Quality
The lifespan of a steel silo is not a fixed number; it is the outcome of a complex interaction between design, material selection, and operational environment. Modern silo design must simultaneously resist material side pressure, wind loads, seismic forces, and thermal stresses from daily temperature fluctuations. The first line of defense is steel thickness and grade. For instance, using high-strength weathering steel (such as Q355NH or S355J2W) can provide 2-3 times greater atmospheric corrosion resistance compared to standard carbon steel. Welding quality is equally critical; full-penetration welds and automated submerged arc welding eliminate porosity and stress concentration points, which are the typical origins of fatigue cracks. Furthermore, foundation design is often overlooked—uneven settlement can cause the entire silo to tilt, introducing additional bending stress on the walls that can lead to local buckling within 5 to 10 years.
In industry practice, many premature failures stem from an insufficient evaluation of "dynamic loads" during the design phase. For example, the dynamic flow pressure during grain discharge (the "funnel effect") can be 3 to 4 times higher than static pressure. If the design does not account for these dynamic forces per European standard EN 1991-4 or Chinese standard GB 50884, the silo will experience accelerated fatigue under frequent loading cycles. Therefore, engaging a qualified engineering team and mandating a full finite element analysis (FEA) for stress verification is the foundational step for long-term reliability.
Environmental Erosion and Maintenance Strategy: A Practical Guide to Extending Life
Environmental conditions are the "silent killers" of steel silos. In
coastal, high-salt-spray areas or chemical plant zones, the corrosion rate can be more than five times higher than in dry inland regions. Acidic materials like phosphate fertilizers or ammonium sulfate release corrosive vapors that condense inside the silo, accelerating pitting corrosion. For these aggressive environments, a multi-layer protective system is essential: a hot-dip galvanized layer (≥85 μm) combined with an epoxy zinc-rich primer and a polyurethane topcoat can provide effective protection for over 15 years. Additionally, roof sealing and ventilation system design are critical—condensation is the primary cause of roof corrosion, and a well-designed natural or forced ventilation system can keep internal relative humidity below 60%, significantly inhibiting electrochemical corrosion.The Three-Tier Maintenance System
Routine maintenance is not optional; it is mandatory. A proven industry best practice is to implement a "three-tier maintenance system":
Daily Inspection (Weekly): Visually check the coating for blistering or peeling; inspect seals at manholes and inlets for aging; use an infrared thermal imager to detect abnormal temperature zones on the silo wall, which may indicate material bridging or localized corrosion thinning.
Quarterly Inspection (Every 3 Months): Use an ultrasonic thickness gauge to measure wall thickness at 30-50 predetermined points and record the corrosion rate. Focus on the weld heat-affected zone, the connection between the silo bottom and foundation, and areas around inlets and outlets. If the corrosion rate exceeds 0.1 mm/year, initiate an immediate corrosion repair plan.
Annual Professional Assessment (Yearly): Hire a third-party structural engineer to conduct stress-strain testing under full-load conditions and review foundation settlement data. For silos in service for more than 15 years, add magnetic particle testing (MT) or penetrant testing (PT) to detect surface micro-cracks.
Key Takeaways
- Key Data: With scientific maintenance, a steel silo’s actual service life can reach 1.5 times its design value, achieving 35-45 years. Without maintenance, structural safety risks can appear in just 10-15 years.
- Best Practice: Before a new silo is commissioned, establish a complete "digital twin" maintenance record, including initial thickness measurements, welding logs, coating specifications, and a risk-based inspection (RBI) plan.
- Watch Out For: Never wait until the silo is empty to perform repairs. Under long-term full-load conditions, constant stress accelerates fatigue crack growth. Use planned downtime for "online" maintenance.
- Pro Tip: For silos handling abrasive or corrosive materials, consider installing sacrificial wear plates at the discharge cone and the impact zone. This simple addition can extend the life of the main shell by 5-8 years.
- Bottom Line: The cheapest silo is the one you only buy once. Investing in higher-grade materials and a robust protective system upfront dramatically reduces total cost of ownership over a 25-year horizon.
Lifecycle Cost Analysis (LCC): Why Upfront Investment Dictates Long-Term Life
Many owners focus on minimizing initial purchase price, ignoring the true "lifecycle cost" (LCC). Consider a grain steel silo with a 15-meter diameter and 20-meter height. If built with ordinary Q235B steel and two coats of standard alkyd paint, the initial cost might be around $110,000. However, by year 8, a full sandblasting and repainting will be required (costing about $20,000), and by year 18, localized corrosion perforation may require panel replacement (costing about $48,000). Over 25 years, total maintenance costs could exceed 60% of the initial investment. In contrast, using Q355NH weathering steel with hot-dip galvanizing and a high-performance coating system increases the initial cost by about 30% (to roughly $143,000). But this system provides over 20 years of corrosion protection, requiring only two minor local repairs in 25 years (total cost about $11,000). The overall lifecycle cost is actually 12% lower. More importantly, it eliminates the production downtime and safety risks associated with corrosion failures.
Therefore, your tender specification should explicitly require: a corrosion protection plan based on ISO 12944-2 environmental corrosivity categories (C3/C4/C5), accompanied by a 25-year lifecycle cost comparison analysis. This is especially critical for projects in chemical plants, ports, and other high-corrosion environments.
Frequently Asked Questions
Q: Which is more critical for a steel silo—"fatigue life" or "corrosion life"? How do I evaluate both?
A: Both are equally critical, but they act through different mechanisms. Corrosion life depends on the environment and the degradation rate of the protective coating, typically predicted by establishing a corrosion rate curve from thickness measurements. Fatigue life depends on the number of loading cycles and the stress amplitude. For example, frequent full-to-empty cycles (more than 3 per day) will significantly reduce fatigue life. The evaluation method should use S-N curves (stress-life curves) combined with the rainflow counting method to analyze the actual load spectrum. For silos with a design life exceeding 20 years, it is recommended to perform both a corrosion allowance design and a fatigue check, and to install an online stress monitoring system.
Q: How can I tell if my silo's coating is failing before visible rust appears?
A: Visual rust is a late-stage indicator. Early signs of coating failure include blistering, chalking (a fine, white powder on the surface), and loss of gloss. A more reliable method is to use a dry film thickness (DFT) gauge and an adhesion tester (pull-off test) annually. If the coating thickness has decreased by more than 20% from the original specification, or if the adhesion strength drops below 5 MPa, the protective barrier is compromised and re-coating should be planned immediately, even if no rust is visible.
Q: What is the single most common design error that shortens a silo's life?
A: The most common error is underestimating dynamic loads, particularly the "funnel flow" pressure during discharge. Many standard designs only calculate static loads. When bulk solids flow, the pressure on the hopper and lower wall can spike to 3-4 times the static value. This cyclic over-stressing leads to rapid fatigue cracking at weld joints and the hopper-to-wall transition. Always ensure your design specification explicitly requires a dynamic load analysis per EN 1991-4 or a similar standard, not just a static check.
Q: Is it worth paying 30% more for weathering steel (like Q355NH) for a grain silo in a dry climate?
A: In a dry, inland climate (ISO 12944 C2 or low C3), the benefit of weathering steel is less pronounced. The primary advantage of weathering steel is its ability to form a stable patina that protects against atmospheric corrosion. In very dry conditions, this patina may not form properly, and the steel could still rust. For such environments, a well-applied standard carbon steel with a high-quality paint system is often the most cost-effective choice. The 30% premium for weathering steel is best justified in humid, coastal, or industrial environments (C3 and above).
Q: How do I create a risk-based inspection (RBI) plan for my existing silo?
A: Start by mapping your silo's "high-consequence" zones: the weld seams, the bottom ring, the discharge cone, and areas around inlet/outlet openings. Next, assess the "probability of failure" by reviewing your thickness measurement history. A simple RBI plan prioritizes zones with the highest corrosion rate and the most severe consequences of failure. For each high-risk zone, define the inspection method (e.g., ultrasonic testing), the frequency (e.g., quarterly), and the acceptance criteria (e.g., minimum remaining wall thickness). Document everything and update the plan annually based on new data.
