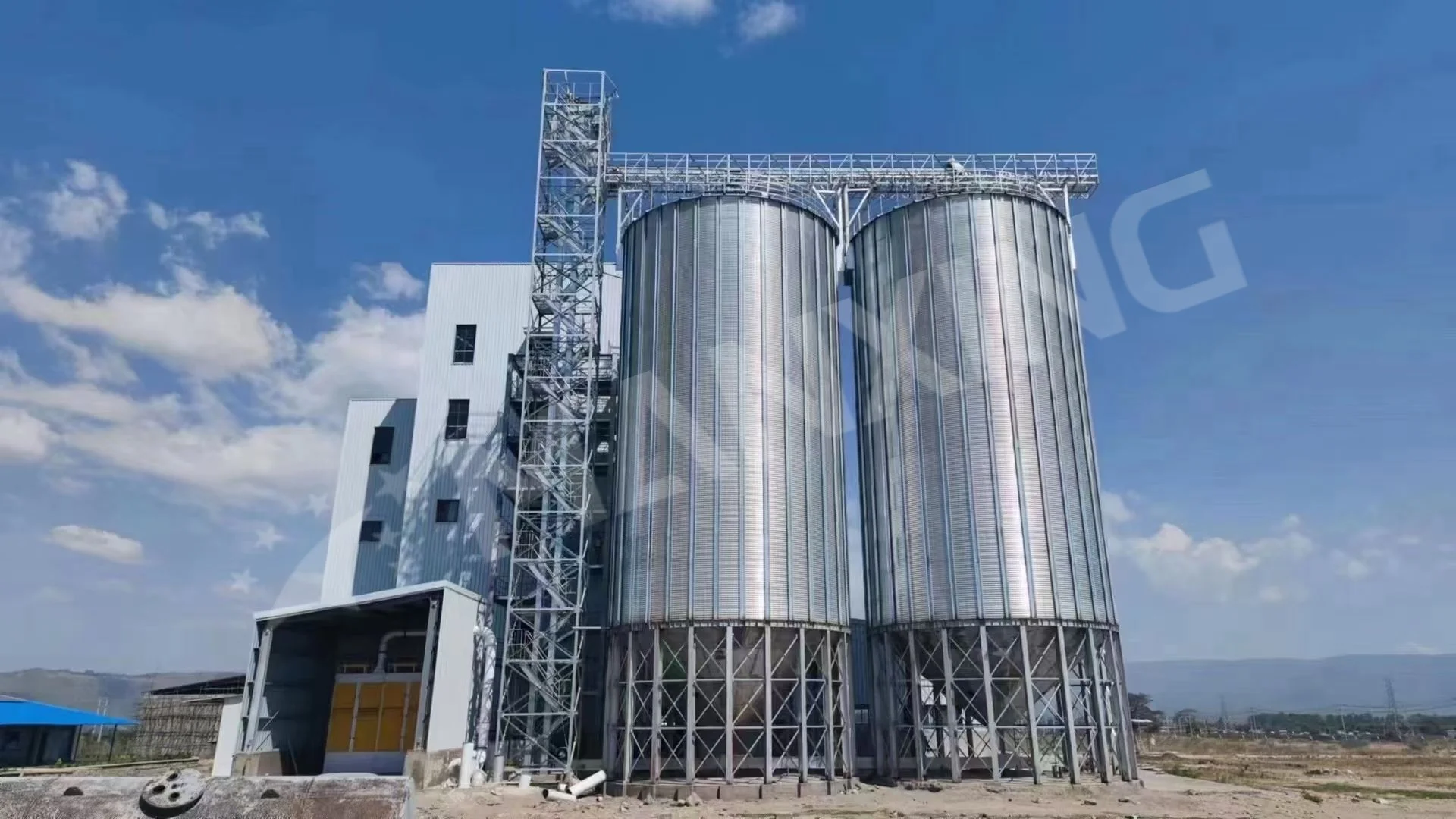

Steel Silo Safety Standards: Essential FAQ for Industrial Operations

Introduction to Steel Silo Safety and Regulatory Compliance

Industrial steel silos represent critical infrastructure for bulk material storage across multiple sectors, from agricultural grain handling to cement production and mineral processing. These towering structures, often reaching heights exceeding 30 meters with capacities surpassing 10,000 cubic meters, demand rigorous safety protocols and compliance with international standards. The consequences of safety lapses can be catastrophic, ranging from structural failures and material contamination to dust explosions and environmental contamination. This comprehensive FAQ addresses the most pressing questions regarding steel silo safety, drawing from engineering best practices, regulatory frameworks, and decades of industrial experience. Whether you're managing existing facilities or planning new installations, understanding these fundamentals is essential for operational excellence and regulatory compliance.

What Are the Most Critical Safety Standards for Steel Silo Design?

Steel silo design must adhere to multiple overlapping standards that address structural integrity, material compatibility, and operational safety. The American Society of Mechanical Engineers (ASME) provides guidelines for pressure vessel design that often apply to silos handling materials under pressure or vacuum conditions. For structural design, the American Institute of Steel Construction (AISC) specifications govern load calculations, particularly for seismic and wind loading in regions prone to natural disasters. European operations typically reference EN 1991-4 for actions on silos and tanks, which includes specific provisions for bulk material pressures and discharge forces.

Material-specific standards are equally crucial. For agricultural applications, the National Fire Protection Association (NFPA) 61 standard addresses fire and dust explosion prevention in facilities handling agricultural commodities. Cement silo operations must consider NFPA 652 for combustible dust hazards, as cement dust can form explosive mixtures under certain conditions. Beyond these, corrosion protection standards like ISO 12944 dictate coating systems based on environmental corrosivity categories, with C5-M industrial atmospheres requiring specialized epoxy or polyurethane coatings with minimum dry film thickness of 240 microns.

• Structural design must account for asymmetric loading during discharge, which can create lateral pressures 30-40% higher than symmetrical filling conditions

• Temperature differentials between stored materials and ambient conditions require expansion joint design accommodating ±50mm movement in large-diameter silos

• Access platforms and ladders must comply with OSHA 1910.23 standards, with guardrails capable of withstanding 200 pounds of force in any direction

• Electrical systems in hazardous dust environments require Class II, Division 2 rating with appropriate explosion-proof enclosures

How Do Compliance Requirements Vary by Industry and Region?

Regulatory compliance for steel silos demonstrates significant variation across industries and geographical boundaries, creating complex requirements for multinational operations. In North America, agricultural silos fall under OSHA's grain handling facilities standard (29 CFR 1910.272), which mandates specific safety measures including lockout/tagout procedures, entry permits for confined spaces, and regular inspection schedules. The Environmental Protection Agency (EPA) additionally regulates emissions from grain handling operations under the Clean Air Act, particularly for particulate matter from loading and unloading activities.

European operations navigate the ATEX directive (2014/34/EU) for equipment in potentially explosive atmospheres, requiring specific certification for electrical components and mechanical equipment that could generate ignition sources. The Machinery Directive (2006/42/EC) further mandates CE marking for silo components, with technical documentation demonstrating compliance with essential health and safety requirements. In Asia-Pacific regions, countries like Australia follow the Dangerous Goods Code for hazardous materials storage, while China's GB standards specify seismic design parameters that exceed many international requirements in high-risk zones.

Industry-specific variations are equally pronounced. Pharmaceutical and food-grade applications require compliance with FDA regulations and sanitary design principles, including polished interior surfaces with minimum 0.8-micrometer roughness and validated cleaning procedures. Cement industry silos must address the unique challenge of material bridging and rat-holing, with OSHA's Process Safety Management standard requiring hazard analysis for silos exceeding certain capacity thresholds. These variations necessitate tailored compliance strategies rather than one-size-fits-all approaches.

What Are the Essential Safety Features for Modern Steel Silos?

Contemporary steel silo design incorporates multiple safety features that address both routine operations and emergency scenarios. Pressure and vacuum relief valves represent fundamental components, typically sized to handle air displacement rates during filling and emptying cycles. For a 5,000-ton capacity grain silo, relief valves must accommodate airflow rates up to 3,000 cubic meters per hour to prevent structural damage from pressure differentials. Level monitoring systems have evolved from simple mechanical indicators to sophisticated technologies including radar sensors with ±0.1% accuracy and temperature-compensated ultrasonic devices that maintain reliability in dusty environments.

Fire prevention systems constitute another critical safety layer. Heat detection cables running along silo walls can identify temperature increases as small as 5°C above ambient, triggering alarm systems before combustion occurs. For explosive dust environments, explosion venting panels designed to rupture at predetermined pressures (typically 0.1-0.2 bar) redirect explosive forces away from personnel and critical infrastructure. Inerting systems using nitrogen or carbon dioxide can maintain oxygen levels below the minimum explosive concentration (MEC), which for grain dust is approximately 15% oxygen by volume.

• Emergency evacuation systems including spiral chutes or controlled descent devices for personnel working at heights exceeding 6 meters

• Grounding and bonding systems with resistance below 10 ohms to prevent static electricity accumulation during pneumatic conveying

• Structural health monitoring using strain gauges and accelerometers that detect abnormal vibrations or stress concentrations

• Automated gas detection for carbon monoxide and phosphine in fumigated grain storage, with alarms triggered at 10% of permissible exposure limits

How Often Should Steel Silos Undergo Safety Inspections?

Inspection frequency for steel silos depends on multiple factors including age, usage patterns, environmental conditions, and regulatory requirements. New installations typically require comprehensive inspections at 6-month intervals during the first two years of operation to identify settlement issues or unexpected wear patterns. Mature silos in continuous operation generally follow annual inspection schedules, with more frequent checks for critical components like discharge gates, safety valves, and structural connections.

Regulatory mandates establish minimum inspection requirements. OSHA's grain handling standard requires formal inspections at least annually, with documentation of findings and corrective actions. The American Petroleum Institute (API) 653 standard for aboveground storage tanks, often referenced for liquid storage silos, mandates external visual inspections annually and comprehensive internal inspections every 5-10 years depending on corrosion rates. For silos in corrosive environments (coastal areas or industrial complexes with acid emissions), inspection frequency may increase to quarterly for critical corrosion zones.

Condition-based monitoring has transformed inspection paradigms. Ultrasonic thickness testing can identify corrosion loss as small as 0.1mm, allowing predictive maintenance scheduling before structural integrity is compromised. Drone-based inspections using high-resolution cameras and thermal imaging can assess hard-to-reach areas without requiring confined space entry, significantly reducing safety risks. These technological advances enable more targeted inspections focused on known trouble spots rather than blanket approaches, optimizing both safety and operational efficiency.

What Are Common Safety Violations and How to Avoid Them?

Regulatory inspections frequently identify consistent safety violations across industrial silo operations, many of which stem from procedural gaps rather than equipment failures. Confined space entry violations represent one of the most common and dangerous infractions, often involving inadequate atmospheric testing, missing entry permits, or insufficient rescue preparedness. Proper confined space programs require continuous monitoring for oxygen levels (maintained between 19.5-23.5%), combustible gases (below 10% of lower explosive limit), and toxic substances, with calibrated instruments tested before each use.

Lockout/tagout deficiencies constitute another frequent violation category, particularly during maintenance of discharge systems or conveyor connections. Effective energy isolation requires multiple protection layers including physical disconnects, personal lockout devices, and verification of zero energy state through attempted equipment operation. For complex systems with multiple energy sources (electrical, pneumatic, hydraulic, gravitational), comprehensive energy control procedures must address each potential hazard individually rather than relying on single-point isolation.

• Inadequate housekeeping allowing dust accumulations exceeding 1/32 inch (0.8mm) over 5% of floor area, creating explosion hazards

• Missing or illegible safety signage for hazards including falling objects, rotating equipment, and high noise areas

• Improper guardrail installation with openings exceeding 19cm or lacking mid-rails at 21-inch height

• Insufficient training documentation for personnel performing specialized tasks like welding repairs or refractory installation

Conclusion: Building a Culture of Safety and Compliance

Steel silo safety extends beyond technical specifications and regulatory checklists to encompass organizational culture and continuous improvement. The most effective safety programs integrate engineering controls, administrative procedures, and personal protective equipment in layered defense strategies. Regular safety audits, near-miss reporting systems, and cross-functional safety committees create proactive environments where potential issues are identified before incidents occur. Technological innovations like predictive analytics and digital twin simulations further enhance safety by modeling failure scenarios and optimizing maintenance schedules.

For organizations seeking to strengthen their silo safety programs, beginning with a comprehensive gap analysis against applicable standards provides a clear roadmap for improvement. Partnering with experienced engineering firms for third-party assessments can identify blind spots in existing protocols. Most importantly, viewing safety not as a compliance burden but as a fundamental component of operational excellence transforms safety management from reactive to strategic. When properly designed, maintained, and operated, steel silos provide decades of reliable service while protecting both personnel and the surrounding community.

For personalized guidance on your specific silo safety challenges or to schedule a compliance assessment, contact our engineering team for a confidential consultation. Our experts bring decades of field experience across multiple industries and regions, ensuring practical solutions tailored to your operational requirements and regulatory environment.
