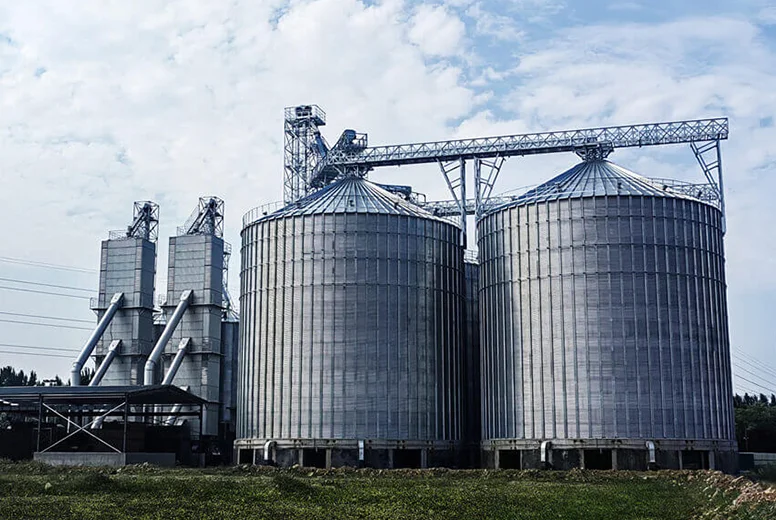

Steel silos are the backbone of grain and industrial bulk storage, yet neglecting maintenance can lead to corrosion rates exceeding 0.1 mm per year and a 20% loss in structural integrity within a decade. This guide, built on 15 years of field experience, delivers a systematic maintenance strategy—from corrosion mechanisms to compliance audits—to maximize your asset lifespan and return on investment.
Understanding Steel Silo Degradation: From Corrosion to Fatigue
Steel silos face multiple degradation pathways, each demanding targeted intervention. Atmospheric corrosion is the most common threat, particularly in coastal regions where salt spray accelerates metal deterioration at rates of 0.1 mm or more annually. Internal corrosion, driven by moisture or corrosive agents in stored materials, eats away from the inner wall outward. Structural fatigue is especially pronounced in areas with extreme temperature swings—repeated thermal expansion and contraction create micro-cracks at welds and joints. Mechanical wear affects moving parts like discharge systems, ladders, and access hatches.
Once you understand these mechanisms, maintenance teams can prioritize interventions based on local climate and operational patterns. For example, silos in high-humidity zones should have coating integrity checked quarterly, while those in dry climates can extend this to semi-annual inspections. Ignoring these differences means even the most robust steel structure will inevitably lose performance.
How to Build an Effective Preventive Maintenance Plan
An effective preventive maintenance plan should be based on risk classification. Start with an initial assessment of each silo, documenting coating condition, weld integrity, grounding systems, and vent status. Then, assign maintenance tiers based on usage frequency and the characteristics of stored materials—such as corrosiveness or hygroscopicity. For instance, silos storing high-moisture corn require monthly checks for internal condensation and mold signs, while those holding dry grain can be inspected quarterly.
Key steps include: regularly removing dust and residual material to prevent blockages and microbial growth; inspecting seals and gaskets to stop rainwater infiltration; and testing discharge system flow to avoid pressure anomalies from clogs. Using digital checklists to record every finding and repair creates a traceable history for better decision-making.
Coating and Corrosion Protection: The First Line of Defense
Coatings are the most effective defense against atmospheric corrosion. We recommend an epoxy zinc-rich primer paired with a polyurethane topcoat, offering a weather-resistant lifespan of 10–15 years. Perform coating thickness tests every two years (dry film thickness should not fall below 250 microns), and pay special attention to welds, bolted connections, and edges. If blistering, peeling, or rust spots appear, repair them within 48 hours to prevent corrosion from spreading.
Structural Integrity Checks: Invisible Risks
Structural fatigue often begins as tiny cracks. Conduct a full visual inspection at least once a year, supplemented by ultrasonic thickness gauges to measure wall thinning. Focus on the bottom one-third of the silo height—this area bears the highest material pressure. If
local dents or deformations are found, immediately assess whether they are caused by overloading or foundation settlement. For large silos over 10 meters in diameter, we recommend hiring a professional agency every five years to perform finite element analysis, verifying the structure’s safety under extreme wind loads and seismic conditions.Key Takeaways
- Key Data: Unmaintained steel silos in humid climates can corrode at 0.1–0.2 mm per year, losing 20% of structural strength within a decade.
- Best Practice: Implement a risk-based maintenance tier system—quarterly coating checks in highly corrosive environments, semi-annual checks in low-risk settings.
- Watch Out For: Never use high-pressure water jets directly inside a silo, as moisture can penetrate welds; instead, use dry cleaning or vacuum methods.
- Pro Tip: Digital inspection logs with photo documentation help track degradation trends and justify capital repair or replacement decisions.
- Bottom Line: A proactive, risk-based maintenance program is the single most cost-effective way to extend silo life and ensure operational safety.
Safety Compliance and Emergency Response: From Regulations to Practice
Global safety requirements for grain storage silos are becoming increasingly stringent. For example, OSHA in the United States mandates explosion-proof ventilation systems and regular dust concentration testing, while the EU’s EN 1993-4-1 standard specifies seismic design parameters for steel silos. Compliance isn’t just about avoiding fines—it protects operator lives and stored material quality. We recommend an annual safety audit to check grounding resistance (should be less than 10 ohms), explosion vent opening pressure (typically 0.05–0.1 bar), and the functionality of emergency stop buttons.
Emergency response plans should cover scenarios like fire, structural collapse, and spontaneous material combustion. For instance, if an abnormal temperature rise inside the silo is detected—more than 15°C above ambient—immediately initiate a grain transfer procedure and notify the fire department. Regular drills (at least every six months) ensure operators are familiar with protocols, reducing panic-driven secondary accidents.
Frequently Asked Questions
Q: How can steel silos in coastal areas be made to last longer?
A: Salt spray in coastal zones accelerates corrosion rates by 3 to 5 times compared to inland areas. We recommend using stainless steel (such as 304L) or aluminum-zinc alloy-coated steel for the silo body. During maintenance, rinse external surfaces with high-pressure fresh water annually to remove salt deposits, and inspect coating damage points quarterly. Additionally, installing a salt-spray barrier—like a green buffer zone—around the silo can reduce corrosion rates by over 30%.
Q: How do you determine if a silo needs replacement rather than repair?
A: When wall thickness loss exceeds 25% of the original, or localized corrosion covers more than 15% of the total surface area, repair costs may approach 60% of a new silo. At that point, perform an economic analysis: if the remaining service life after repair is less than 5 years, and annual maintenance costs exceed 10% of the depreciation cost of a new silo, replacement is advised. Also, if foundation settlement is uneven—with a differential exceeding 50 mm—rebuilding is usually the only viable option.
Q: How can internal condensation in grain storage silos be prevented?
A: Condensation is a primary cause of mold and corrosion. Solutions include: installing a temperature-controlled ventilation system at the silo top that automatically exhausts air when internal temperature exceeds ambient by 5°C; using reflective thermal insulation coatings to reduce day-night temperature swings; and controlling incoming grain moisture content (corn at 14% or less, wheat at 12.5% or less). For silos already affected, short-term use of dehumidifiers (keeping relative humidity below 65%) combined with mechanical ventilation can help dry the interior.
Q: What is the recommended frequency for ultrasonic thickness testing on steel silos?
A: For silos in standard environments, annual ultrasonic thickness testing is sufficient. However, for silos storing corrosive materials or located in coastal/high-humidity areas, we recommend testing every six months. Focus measurements on the bottom third of the silo wall, around discharge openings, and at weld seams. Any reading showing more than 10% thinning from the original design thickness should trigger a detailed structural assessment.
Q: Are there specific maintenance considerations for bolted steel silos versus welded silos?
A: Yes. Bolted silos require special attention to bolt torque and gasket integrity. Check bolt tension annually—loosening can lead to leaks and structural instability. Gaskets between panels should be inspected for embrittlement or compression set, and replaced every 5–7 years. Welded silos, on the other hand, need focused weld seam inspections for fatigue cracks, especially near stiffeners and transition zones. Ultrasonic or magnetic particle testing is recommended for critical welds every 3–5 years.
