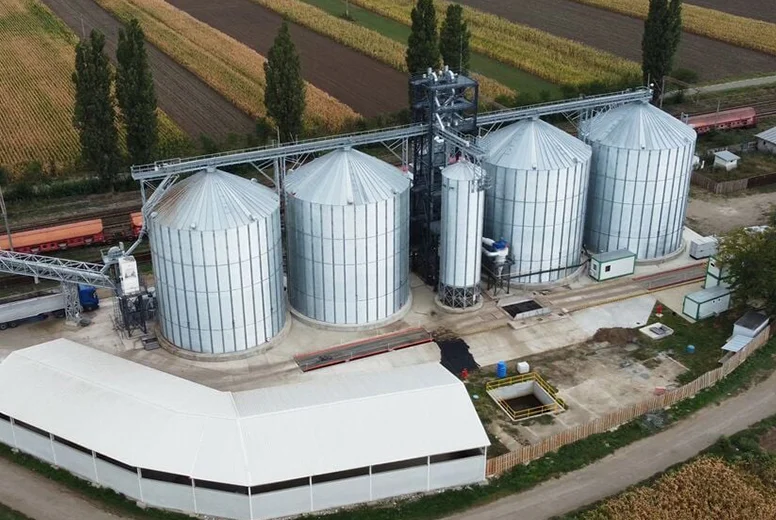

Flat bottom silo for industrial use

In the realm of bulk material storage, the flat bottom silo has emerged as a preferred choice for various industrial sectors due to its efficiency, reliability, and ease of maintenance. Its distinctive structural design offers numerous benefits that cater to the demanding needs of industries such as cement, grains, chemicals, and materials processing.

Features of Flat Bottom Silos

1. Structural Design and Material Surface Dynamics
The hallmark of a flat bottom silo lies in its horizontal, flat base made of reinforced concrete or steel, ensuring uniform support for stored materials. Unlike conical-bottom silos, the flat bottom offers a sinuous surface that minimizes dead zones and facilitates uniform material flow. The design typically incorporates a hopper angle or a gentle slope beneath the flat surface to aid in discharge, providing versatility in material handling.

2. Advantages in Material Discharge and Flow Control

3. Stability and Load-Bearing Capacity
Constructed with high-grade materials, these silos are engineered to handle substantial internal stresses. The flat bottom structure ensures uniform load distribution, bolstering stability especially when accommodating heavy or cohesive bulk materials. The foundation can be customized to support varying load capacities, making it suitable for large-scale industrial operations.

4. Ease of Inspection and Maintenance
From a maintenance perspective, flat bottom silos offer clear access points at the base for inspection, cleaning, and repairs. The flat surface simplifies the installation of sensors for level detection and other monitoring equipment, ensuring safe and autonomous operation.

Industrial Applications of Flat Bottom Silos

1. Cement Industry
In cement plants, flat bottom silos are used for storing clinker, fly ash, and other raw materials. The smooth and stable surface facilitates quick discharge, which is critical for continuous manufacturing processes.

2. Grain Handling and Storage
Grains such as wheat, corn, and soybeans benefit from flat bottom silos due to their gentle flow characteristics, preventing cracking and spoilage. The ease of cleaning is advantageous for maintaining quality standards.

3. Chemical & Fertilizer Storage
For powdered and granular chemicals, flat bottom silos enable safe storage and controlled discharge, reducing dust generation and contamination risks.

4. Minerals and Aggregate Storage
Heavy-duty applications require robust structures; flat bottom silos offer high load-bearing capacity for storing and dispensing coarse materials such as limestone and gravel.

Technical Parameters and Solutions

1. Capacity and Dimensions
Flat bottom silos come in a broad range of capacities, from small units (a few hundred cubic meters) to massive structures exceeding 20,000 cubic meters. The diameter and height are designed based on regional standards, material properties, and volumetric needs.

2. Material and Thickness
Constructed from reinforced concrete or steel, the wall thickness and bottom plate are selected based on internal pressure and load factors. For example, steel silos may use thicknesses from 6mm to 20mm, with additional bracing to sustain cyclic stresses.

3. Discharge Outlet and Ventilation
Discharge apertures are strategically placed at the bottom center, often equipped with vibrators or aeration pads to facilitate smooth flow. Ventilation systems are integrated to control temperature and moisture, crucial for preserving sensitive materials.

4. Foundation and Support Solutions
The foundation requires detailed geotechnical analysis. Flat bottom silos often rest on reinforced concrete pads or piers, with insulation and sealing layers for environmental protection.

Innovative Solutions and Technical Enhancements

• Low-Temperature Discharge Systems: For materials sensitive to temperature variations, incorporating insulation and heating elements prevents material degradation during discharge.

• Silo Monitoring and Automation: Integration of level sensors, weight measurement systems, and remote control modules enhances operational safety and efficiency.

• Modular Design Approaches: For scalability and retrofit capabilities, modular flat bottom silos enable quick assembly, expanded storage, and adaptability to evolving industrial needs.
